MIL-STD-810G 5~2000hz High Frequency Vibration Test Machine

Ask Lasest Price
Brand Name :	ASLI
Model Number :	ES-10
Certification :	CE, ISO, SGS, BV
Price :	negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 set per quarter
Delivery Time :	40 workdays

Add to Cart

Product Details
Company Profile

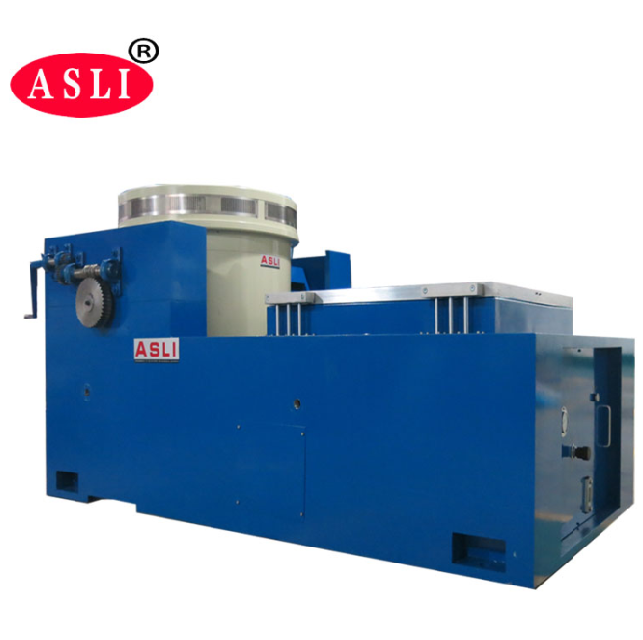

MIL-STD-810G 5~2000hz High Frequency Vibration Test Machine

vibration test equipment ES-10.pdf

MIL-STD-810G 5~2000hz High Frequency Vibration Test Machine

Product Description

Vibration Test Equipment Supplier Parameter:
Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed (m/s)	Rated displacement (p-p) mm	Max. Loading (Kg)	moving coil(Kg)	Dimension of Moving coil (mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450

Technical Parameters of Vertical Expander

Technical Parameters of Horizontal Expander:

high frequency shaker table Specifications

1. Well-designed dynamic circle skeleton, with a higher stage axial
resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact
structure and rational.
3. Rocker Rod roller bearings straight and import-oriented
composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the
installation of mobile convenience.
5. Advanced technology move around the system to ensure that the
dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small
balloon, raising the vibration table bearing capacity, improve
low-frequency performance.

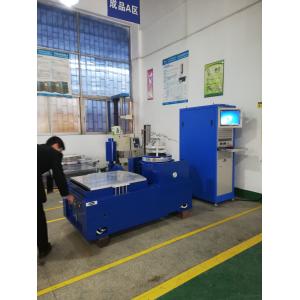

Pictures for reference:

Exhibition:

If you have any doubt or needs about MIL-STD-810G 5~2000hz High
Frequency Vibration Test Machine, please feel free to send your
inquiries.
