Electro-Dynamic High Frequency Vibration Shaker Test System

Ask Lasest Price
Brand Name :	ASLI
Model Number :	ES-20
Certification :	CE
Price :	USD 20000~60000
Payment Terms :	T/T,
Supply Ability :	30 set per month
Delivery Time :	40 work days after deposit

Add to Cart

Product Details
Company Profile

Electro-Dynamic High Frequency Vibration Shaker Test System

Electro-Dynamic High Frequency Vibration Shaker Test System

vibration test equipment ES-20.pdf

why is vibration test necessary

Not hard to understand Vibration may influence the durability and reliability of machinery systems or structures and cause problems such as damage, abnormal stopping, and catastrophic failures. Vibration measurement is an important countermeasure to prevent these problems from occurring

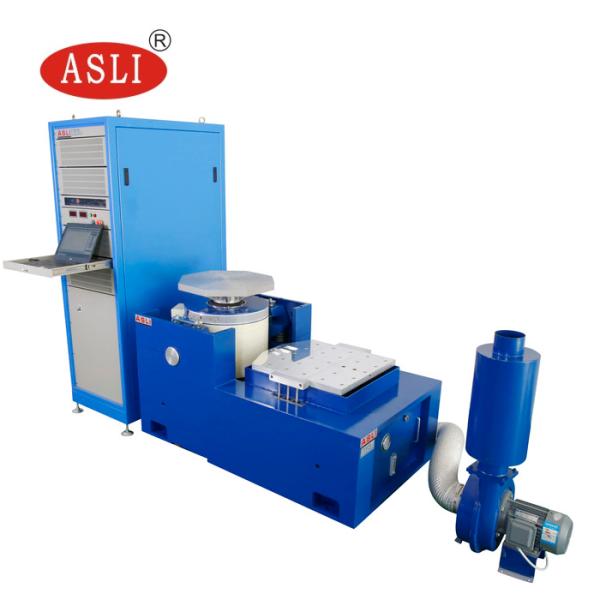

Test system composition

1. One-piece horizontal vibration generator
2. Vertical expansion table
3. Cooling fan with muffler
4. Digital switching power amplifier
5. Multi-function vibration control measuring instrument.

Specification

Name	Electro-Dynamic High Frequency Vibration Shaker Test System
Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed(m/s)	Rated displacement (p-p)mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil (mm)
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450

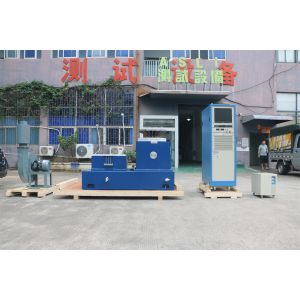

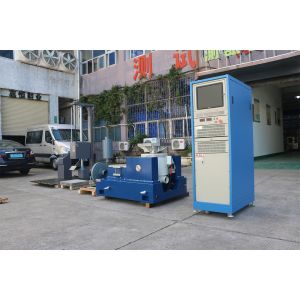

Vibrating Shaker Table Vibration Tester

Electro-Dynamic High Frequency Vibration Shaker Test System

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

Electro-Dynamic High Frequency Vibration Shaker Test System

If you have any doubt or needs about Electro-Dynamic High Frequency Vibration Shaker Test System, please feel free to contact us.
