UN 38.3 Electrodynamic Vibration Test Table For Automotive And
Motorcycle Batteries
1. 300kgf Payload mechanical vibration test machine vibration
monitoring system Features :
1. Well-designed dynamic circle skeleton, with a higher stage axial
resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact
structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite
body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the
installation of mobile convenience.
5. Advanced technology move around the system to ensure that the
dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small
balloon, raising the vibration table bearing capacity
2. 300kgf Payload mechanical vibration test machine vibration
monitoring system Application:
Electrodynamic shaker & vibration testing equipment for lab widely used in national defense, weapons, aviation, aerospace, communications,electronics, electrical appliances, communications, home appliances and other fields.
3. 300kgf Payload mechanical vibration test machine vibration
monitoring system Technical Parameters:
Model | Rated Sine Force (N) | Rated Random Force (N) | Frequency Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated Replacement (p-p)mm | Max. Loading (Kg) | moving coil (Kg) | Dimension of Moving coil(mm) |
ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
High Frequency Vibration Test Bench Technical Parameters:
| Model | Rated Sine
Force (N) | Rated Random
Force (N) | Frequency
Range (Hz) | Rated Acceleration (m/s2) | Rated Speed(m/s) | Rated displacement
(p-p)mm | Max. Loading (Kg) | moving coil(Kg) | Dimension of
Moving coil(mm) |
| ES-1 | 1000 | 1000 | 3-3500 | 400 | 1.2 | 25 | 70 | 2.5 | Φ150 |
| ES-2 | 2000 | 2000 | 3-3500 | 800 | 1.6 | 25 | 70 | 2.5 | Φ150 |
| ES-2a | 2000 | 2000 | 3-3500 | 300 | 1.6 | 40 | 70 | 8 | Φ230 |
| ES-3 | 3000 | 3000 | 3-3500 | 1000 | 1.6 | 25 | 100 | 3.5 | Φ150 |
| ES-3a | 3000 | 3000 | 3-3500 | 400 | 1.6 | 40 | 120 | 9 | Φ230 |
| ES-6 | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 25 | 180 | 6.5 | Φ230 |
| ES-6a | 6000 | 6000 | 3-3500 | 1000 | 1.6 | 51 | 250 | 12 | Φ230 |
| ES-10 | 10000 | 10000 | 3-3000 | 1000 | 1.8 | 51 | 270 | 14 | Φ240 |
| ES-20 | 20000 | 20000 | 3-3000 | 1000 | 1.8 | 51 | 300 | 30 | Φ320 |
| ES-30 | 30000 | 30000 | 3-2800 | 1000 | 1.8 | 5l | 450 | 40 | Φ450 |
| ES-40 | 40000 | 40000 | 3-2800 | 1000 | 1.8 | 51 | 500 | 50 | Φ450 |
| ES-50 | 50000 | 50000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 50 | Φ450 |
| ES-60 | 60000 | 60000 | 3-2700 | 1000 | 1.8 | 51 | 750 | 60 | Φ450 |
| ES-100 | 100000 | 100000 | 3-2500 | 1000 | 1.8 | 51 | 1000 | 90 | Φ450 |
| ES-120 | 120000 | 120000 | 3-2200 | 1000 | 1.8 | 51 | 1100 | 90 | Φ500 |
| ES-160 | 160000 | 160000 | 3-2100 | 1000 | 1.8 | 51 | 1500 | 150 | Φ600 |
| ES-200 | 200000 | 200000 | 3-2000 | 1000 | 1.8 | 51 | 2500 | 200 | Φ650 |
| ES-350 | 350000 | 350000 | 3-1700 | 1000 | 1.8 | 51 | 4500 | 300 | Φ870 |
......

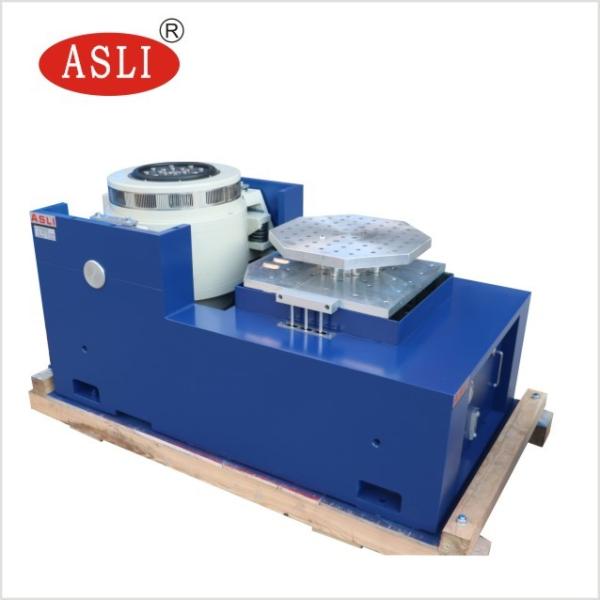

ES-3 Electro dynamic vibration shaker
1. Parameters
(1) Rated Force: sine force 3000N; random force 3000N; shock force 6000N;
(2) Frequency Range: 3Hz to 3500Hz, Fixed frequency, sweep back and forth, sine, random, shock
(3)Sweep-frequency Mode: linear, logarithmic, sweep back and forth, fixed frequency
(4)Sweep-frequency Times: 1 to 32767
(5)Sweep-frequency Time: fixed frequency/single 1-3600mins, sweep-frequency curves can be displayed.
(7)Max. Speed: 1.6m/s
(8)Max. Displacement:25mmp-p (non load), double peak
(9)Impact Displacement: 25mm
(10)Weight of Moving Coil: 3.0kg
(11)Vibration Wave: sine, random, shock, the control spectra, wave,
signal dynamic range can be displayed
(12)Diameter of the Moving Coil: Φ150 mm
(13)Vibration System Dimension: W950xH650xD800 mm
(14)Vibration System weight: 750KG
2 Vibration Components Details
(1)Vibration Generator 1 set
(2)Vibration Controller 1 set
(3)Communication Connection Chamber 1 set
(4)DA-3 Power Amplifier 1 set
(5)Excitation Power 1 pc
(6)Driver Software 1 set
(7)Cooling System 1 set
(8)Color Printer 1 set
(9)Acceleration Sensor (include output line) 1 pc
2-4-2 Controlling Software Specification
2-4-2-1 Sinusoidal Wave
(1)Control Mode : sinusoidal waveform controlling software
(2) Frequency Range: 1.0 to 5000hz ( 1.0 to 12000hz is optional)
(3)Control Dynamic Range : 100dB
(4)Closed-Loop Time: 10ms
(5)Control Accuracy: ±1dB
(6) Frequency Resolution: 0.01%
(7) Sweep Velocity: linear sweep 0 to 6000hz/s; logarithmic sweep 0 to 6000hz/s
(8)Wave Distortion: <0.3%
2-4-2-2 Random Wave
(1)Control Mode : PSD
(2)Frequency Range: DC to 4800Hz,(DC to 11000Hz is optional)
(3)Resolution: Max.1600 lines
(4)Control Dynamic Range : 90dB
(5)Closed-Loop Time: typically 100ms
(6)Control Accuracy: ±1dB
2-4-2-3 Shock Wave
(1)Control Mode : waveform can be controlled
(2)Shock Mode: half-sine wave,saw tooth wave,triangular
wave,rectangular wave,trapezoidal wave
(3)Frequency Range: DCto22000Hz
(4)Frame: Max.32K
(5)Duration Time : 0.5-3000ms
(6)Compensation Mode: pre-pulse, after-pulse, pre/after-pulse
Our Services
4. Warranty: one year free warranty ,lifelong maintenance.
5. After-sale service: Feedback within 2 hours after get call.
6. Service:OEM service,Design service,Buyer lable service.
Company Information
ASLi (China) Test Equipment Co., Ltd is a long history
manufacturing test equipments, in the past 10 years, we devoted to manufacturing
climatic chambers,simulation environronmental test equipment and
Mechanical test equipment.
ASLi main products: Environmental chambers, temperature (humidity) chamber, PCT /Hast
chamber (Highly accelerated stress test chamber),ESS chamber, Walk
in stability chamber,Vacuum oven,vibration tester, mechanical shock
tester,environmental combined vibration chamber,etc
FAQ
1. Are your company a trading one or a factory?
Factory ,28 years focusing on test instruments field,4 years
exporting experience.
2. After an order is placed, when to deliver?
Generally about 20 workdays, If we have finished products, we can
arrange shipment within 3 workdays.
Please be aware that our production lead times depend on specific
items and item quantities.
3. What about the warranty with after - sales services?
12 months warranty.
After the warranty, the professional after-sale service team will
provide perfect technical support,and help customer solve problems
encountered while using our product, handles guest problems and
complaints in a professional and timely.
4. What about the services and product' quality?
Service: OEM service,Design service,Buyer lable service.
Quality: Each instruments must be carried out 100% quality examination and
test, the finished products must through a third party calibration
institutions before shipping and delivery goods.
5. How to install and training?
If the products is easy to install and training, customers can
learn the operation and maintenance manual to installation and use.
If the products is hard to use, customers can come ASLi factory to
learn how to installation and use. And our engineers have a
passport, we can go to overseas.
6.What's your main products?
Environmental chambers, temperature (humidity) chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in stability chamber,Vacuum oven,Altitude chamber,vibration test system, mechanical shock tester,environmental combined vibration chamber,etc.
Welcome our new and regular customers visit our factory, and any
inquiries please feel free to contact us !
