    SGS Lab 6000N Vertical Vibration Shaker Machine For Electronic Products

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : ES-6
    Certification : CE, ISO, SGS
    Price : negotiable
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 100 sets per quarter
    Delivery Time : 30~40 days
    • Product Details
    • Company Profile

    SGS Lab 6000N Vertical Vibration Shaker Machine For Electronic Products


    Programmable Electromagnetic Vibration Test Machine for Electronic Products


    High Frequency Vibration Tester can be used as the basis of improving product or reference.It is ideally suitable for electronic, LED lighting industry, auto parts, chemical industry, building materials, mobile computers, batteries, plastic, metal, rubber etc.material.


    ES series electromagnetic vibration testing system is specially designed to meet the need for long time operation, installation of vibration resistant base can achieve vertical and horizontal vibration. The standard platform is installed with high efficiency airbag shock isolation device so that the vibration transmitted to the building can be minimized, at the sane time avoid the need of additional foundation in most of the cases.



    Technical Parameters:


    Model

    Rated Sine

    Force (N)

    Rated Random

    Force (N)

    Frequency

    Range (Hz)

    Rated Acceleration (m/s2)Rated Speed(m/s)

    Rated displacement

    (p-p)mm

    Max. Loading (Kg)moving coil(Kg)

    Dimension of

    Moving coil(mm)

    ES-3300030003-350010001.6251003.5Φ150
    ES-3a300030003-35004001.6401209Φ230
    ES-6600060003-350010001.6251806.5Φ230
    ES-6a600060003-350010001.65125012Φ230
    ES-1010000100003-300010001.85127014Φ240
    ES-2020000200003-300010001.85130030Φ320
    ES-3030000300003-280010001.85l45040Φ450
    ES-4040000400003-280010001.85150050Φ450
    ES-5050000500003-270010001.85175050Φ450
    ES-6060000600003-270010001.85175060Φ450

    Features


    1 Light armature, high stiffness, 4000 HZ frequency.

    2 Computer connecting line control, immediately store materials.

    3 Display controlling chart.

    4 Low resistance and high performance design, high efficiency, low cost.

    5 High reliability, low fault.

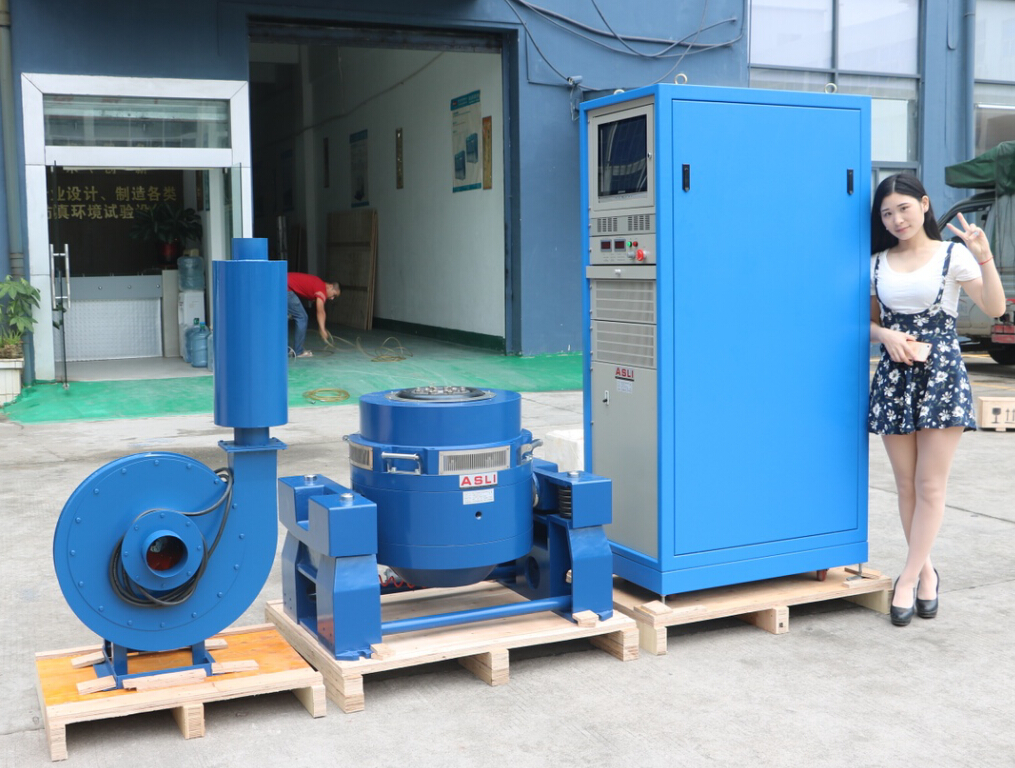

    Pictures for reference


    If you need more information about SGS Lab 6000N Vertical Vibration Shaker Machine For Electronic Products, please don't hesitate to send your inquiry.
