3500Hz 200kg.F High Frequency Vibration Shaker With Slip Table

Ask Lasest Price
Brand Name :	ASLI
Model Number :	ES-2
Certification :	CE
Price :	USD 20000~50000
Payment Terms :	T/T
Supply Ability :	30 set per month
Delivery Time :	30-35 work days after deposit

Add to Cart

Product Details
Company Profile

3500Hz 200kg.F High Frequency Vibration Shaker With Slip Table

Vertical Electrodynamics Vibration Shaker Table with Loading Vibration Test

Vertical Electrodynamics Vibration Shaker Table with Loading Vibration Test Technical Parameters

Electrodynamic shake vibration tester adopted the double- magnetic circuit structure, self-generated skeleton action circles, Airborne Support and roller bearings and linear guidance, trunnion isolation advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²⁾	Rated Speed (m/s)	Rated displacement (p-p)mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil (mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES-120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500

3500Hz 200kg.F High Frequency Vibration Shaker With Slip Table

Technical parameters of Vibration Testing Equipment horizontal expander:

3500Hz 200kg.F High Frequency Vibration Shaker With Slip Table

Technical parameters of vibration tester machine vertical expander:

3500Hz 200kg.F High Frequency Vibration Shaker With Slip Table

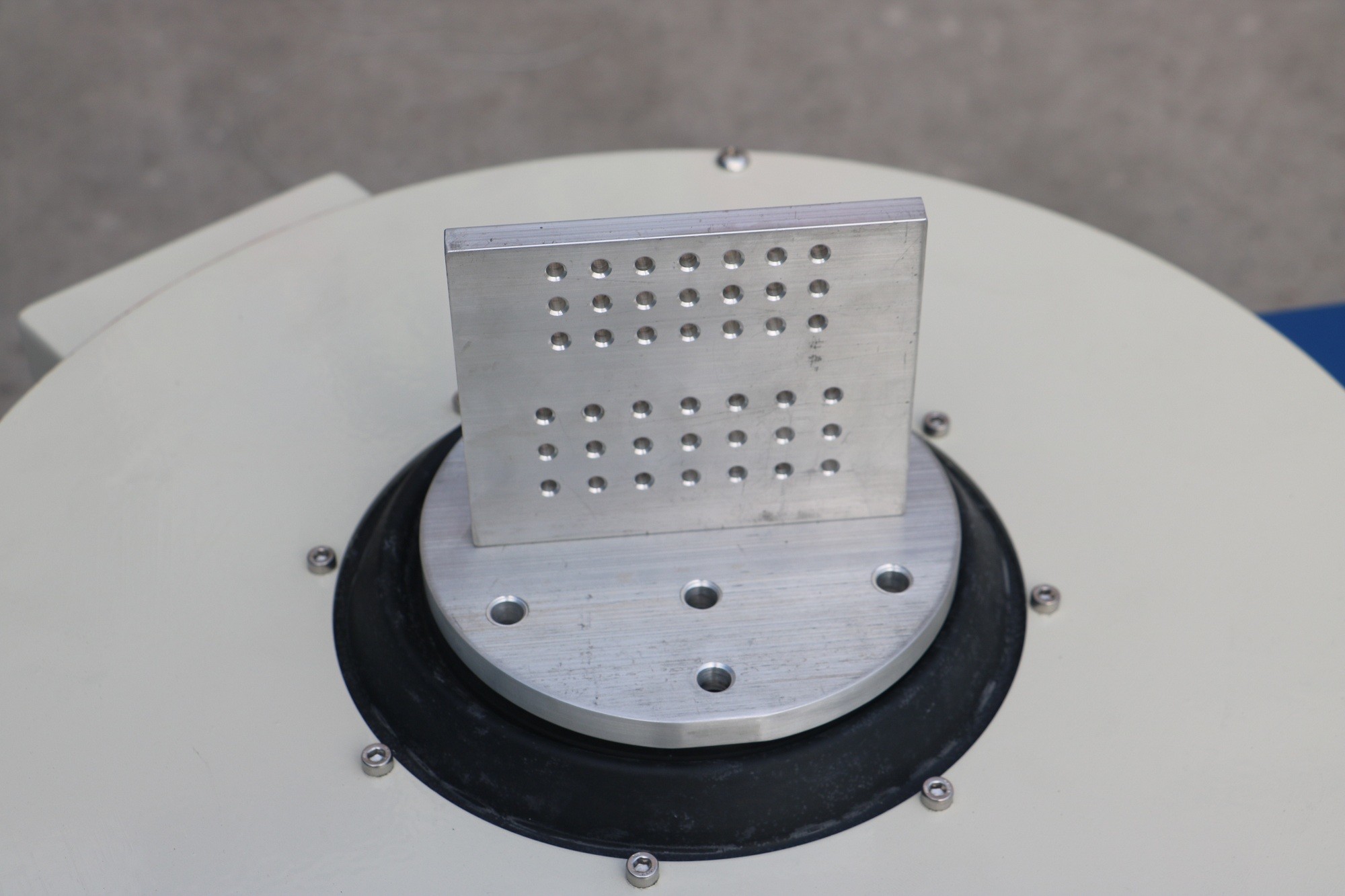

Product Pictures with Electrodynamic Vibration Shaker System:

Package about shock tester machine:

PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.

Exhibition about test equipment:

If you have any question about those vibration shaker, please feel free to contact with us,thank you .
