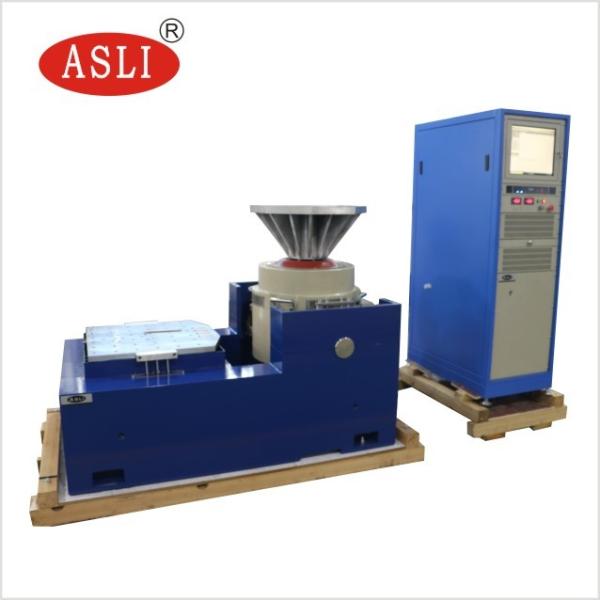

CE 10KN Electrodynamic Vibration Shaker With Air Cooling

Ask Lasest Price
Brand Name :	ASLI
Model Number :	ES-10
Certification :	CE certificate
Price :	negotiable
Payment Terms :	T/T, Western Union, L/C
Supply Ability :	100 sets per quarter
Delivery Time :	30~35 workdays

Add to Cart

Product Details
Company Profile

CE 10KN Electrodynamic Vibration Shaker With Air Cooling

ES-10 mechanical vibration test system.pdf

Air Cooling Electrodynamic Vibration Shaker with CE Certificate

Electrodynamic Vibration Shaker as well as the simulated transport vibration test of the packaged products, to assess the degree of vibration-resistance.... simulate the transport process Caused damage because of the vibration force, the test results can be used as the reference of the design packaging.

Technical Parameters:

Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s²⁾	Rated Speed(m/s)	Rated displacement (p-p)mm	Max. Loading (Kg)	moving coil(Kg)	Dimension of Moving coil(mm)
ES-3	3000	3000	3-3500	1000	1.6	25	100	3.5	Φ150
ES-3a	3000	3000	3-3500	400	1.6	40	120	9	Φ230
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450
ES-120	120000	120000	3-2200	1000	1.8	51	1100	90	Φ500

Technical Parameters of Vertical Expander

Model	Weight (kg)	Max. Frequency (Hz)	Bench Size
VT300	10	2000	Φ300
VT400	16	2000	Φ400
VT500	25	1500	Φ500
VT600	35	1000	Φ600
VT0303	15	2000	300×300
VT0404	22	1500	400×400
VT0505	30	500	500×500
VT0606	58	350	600×600

Technical Parameters of Horizontal Expander:

Model	Bench Size (mm)	Frequency Range (Hz)	Weight of Moving Parts (kg)
LT0303	300×300×22 300×300×26 300×300×30	5-1000 5-1500 5-2000	6.6 7.8 9.0
LT0404	400×400×22 400×400×26 400×400×30	5-l000 5-1400 5-2000	11.2 13.2 16.0
LT0505	500×500×25 500×500×30 500×500×35	5-1000 5-1500 5-2000	19.3 23.1 27.0
LT0606	600×600×25 600×600×30 600×600×40	5-1000 5-1200 5-2000	27.5 33.0 45

Vibration Testing Machine Specifications

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.
2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.
3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.
4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.
5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.
6. New duct design and enhance the cooling effect.
7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.

Air Cooling Electrodynamic Vibration Shaker with CE Certificate
