STD Standard 60000N Vibration Shaker System Lab Testing Machine

Ask Lasest Price
Brand Name :	ASLI
Model Number :	ES-60
Certification :	CE
Price :	USD 20000~50000
Payment Terms :	D/A, D/P, T/T, L/C
Supply Ability :	10 set per month
Delivery Time :	30-35 work days after deposit

Add to Cart

Product Details
Company Profile

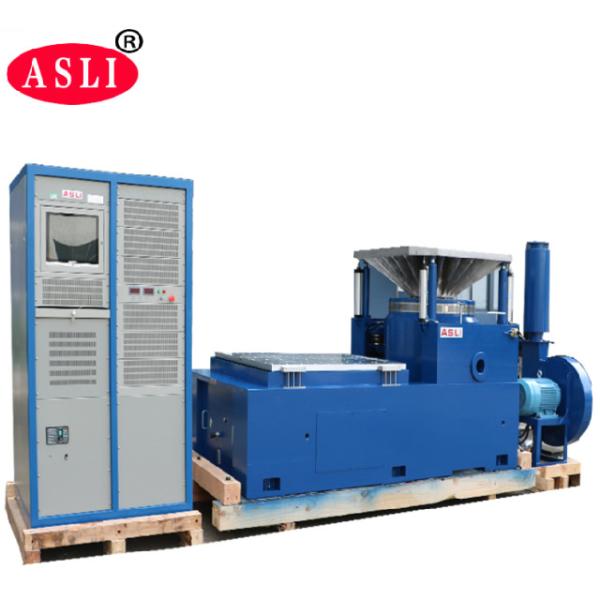

STD Standard 60000N Vibration Shaker System Lab Testing Machine

High Frequency Vibration Testing Machine / Vertical Skaker System Apply For IEC ISTA MIL STD Test Standard

Application

High Frequency Vibration Testing Machine / Vertical Skaker System Apply For IEC ISTA MIL STD Test Standard adopted the 'double-magnetic circuit structure','self-generated skeleton action circles', 'Airborne Support' and 'roller bearings and linear guidance','trunnion isolation' advanced modern technology and special technology, can be completed in X, Y, Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine) pulse and shock response spectrum test. It widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.

Technical Parameters:

System Specification
System Model:		ES- 60
Frequency Range:		3~3500
Rated Force	Sine N	60000
	Random N	60000
	Shock N	120000
Maximum Acc.	sine (m/s2)	1000
	Random (m/s2 rms)	1000
	Shock(m/s2)	2000
Maximum Vel.	sine (m/s2)	1.8
	Shock(m/s2)	1.8
Maximum Disp.	Maximum Travel mm (p-p)	51
Moving Coil		60kgs
Dimension of moving coil		Dia 40mm
Vertical table Size customized		select according to test
Horizontal table sizecustomized size		setect according to test
Max Load:		800kgs

Name	Packing Vibration Table/Vibration Table Tester for Auto Parts
Model	Rated Sine Force (N)	Rated Random Force (N)	Frequency Range (Hz)	Rated Acceleration (m/s2)	Rated Speed(m/s)	Rated displacement (p-p)mm	Max. Loading (Kg)	moving coil (Kg)	Dimension of Moving coil (mm)
ES-6	6000	6000	3-3500	1000	1.6	25	180	6.5	Φ230
ES-6a	6000	6000	3-3500	1000	1.6	51	250	12	Φ230
ES-10	10000	10000	3-3000	1000	1.8	51	270	14	Φ240
ES-20	20000	20000	3-3000	1000	1.8	51	300	30	Φ320
ES-30	30000	30000	3-2800	1000	1.8	5l	450	40	Φ450
ES-40	40000	40000	3-2800	1000	1.8	51	500	50	Φ450
ES-50	50000	50000	3-2700	1000	1.8	51	750	50	Φ450
ES-60	60000	60000	3-2700	1000	1.8	51	750	60	Φ450
ES-100	100000	100000	3-2500	1000	1.8	51	1000	90	Φ450

STD Standard 60000N Vibration Shaker System Lab Testing Machine

1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

6. New duct design and enhance the cooling effect.

7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table bearing capacity, improve low-frequency performance.
