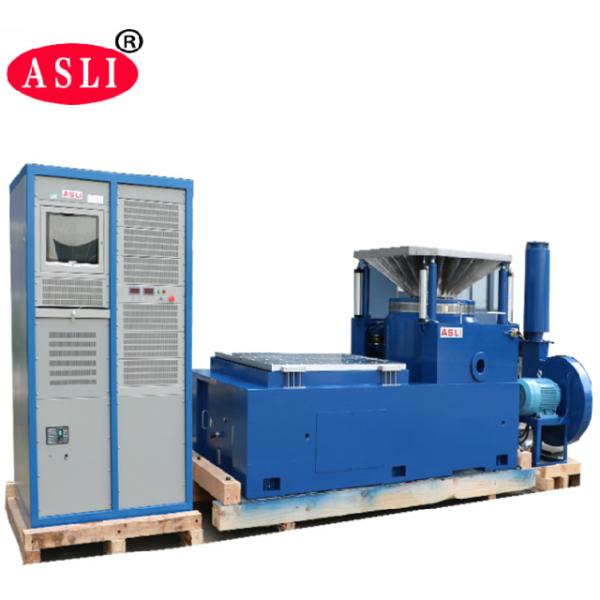

    20000N Dynamic Vibration Shaker Machine For LED Display Device

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : ES-20
    Certification : CE
    Price : USD 50000~80000
    Payment Terms : T/T
    Supply Ability : 30 set per month
    Delivery Time : 30-35 work days after deposit
    • Product Details
    • Company Profile

    20000N Dynamic Vibration Shaker Machine For LED Display Device

    Dynamic Vibration Shaker Machine For LED Display Devices Vibration Testing


    About ASLi factory For xyz axis vibration testing machine:


    We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine.ES-20 Digital Electrodynamics Type VibrationTester, High Frequency Vibration Test Machine is our star products , and we had obtained the CE certification for this machine .

    Package: PP film first, and then 10mm foam between machine and the case, and outside is standard export plywood case.


    Technical Parameters of XYZ axis Vibration Tester:


    Model

    Rated Sine

    Force (N)

    Rated Random

    Force (N)

    Frequency

    Range (Hz)

    Rated Acceleration (m/s2)Rated Speed(m/s)

    Rated displacement

    (p-p)mm

    Max. Loading (Kg)moving coil(Kg)

    Dimension of

    Moving coil(mm)

    ES-1100010003-35004001.225702.5Φ150
    ES-2200020003-35008001.625702.5Φ150
    ES-2a200020003-35003001.640708Φ230
    ES-3300030003-350010001.6251003.5Φ150
    ES-3a300030003-35004001.6401209Φ230
    ES-6600060003-350010001.6251806.5Φ230
    ES-6a600060003-350010001.65125012Φ230
    ES-1010000100003-300010001.85127014Φ240
    ES-2020000200003-300010001.85130030Φ320
    ES-3030000300003-280010001.85l45040Φ450
    ES-4040000400003-280010001.85150050Φ450
    ES-5050000500003-270010001.85175050Φ450
    ES-6060000600003-270010001.85175060Φ450
    ES-1001000001000003-250010001.851100090Φ450
    ES-1201200001200003-220010001.851110090Φ500
    ES-1601600001600003-210010001.8511500150Φ600
    ES-2002000002000003-200010001.8512500200Φ650
    ES-3503500003500003-170010001.8514500300Φ870

    20000N Dynamic Vibration Shaker Machine For LED Display Device

    Features:


    1. Well-designed dynamic circle skeleton, with a higher stage axial resonance frequency.

    2. Two-magnetic circuit, magnetic flux leakage low, compact structure and rational.

    3. Rocker Rod roller bearings straight and import-oriented composite body stiffness orientation, eccentric load capacity.

    4. Trunnion isolation foundation dedicated to hormone use, the installation of mobile convenience.

    5. Advanced technology move around the system to ensure that the dynamic circle of high reliability.

    6. New duct design and enhance the cooling effect.

    7. Static stiffness, dynamic stiffness of the bearing small balloon, raising the vibration table capacity, improve low-frequency performance.


    Technical Parameters of Horizontal Vibration Table:


    ModelBench Size (mm)Frequency Range (Hz)Weight of Moving Parts (kg)
    LT0303300×300×22
    300×300×26
    300×300×30
    5-1000
    5-1500
    5-2000
    6.6
    7.8
    9.0
    LT0404400×400×22
    400×400×26
    400×400×30
    5-l000
    5-1400
    5-2000
    11.2
    13.2
    16.0
    LT0505500×500×25
    500×500×30
    500×500×35
    5-1000
    5-1500
    5-2000
    19.3
    23.1
    27.0
    LT0606600×600×25
    600×600×30
    600×600×40
    5-1000
    5-1200
    5-2000
    27.5
    33.0
    45
    LT0707700×700×25
    700×700×30
    700×700×35
    5-800
    5-1000
    5-1500
    36.8
    44.2
    52
    LT0808800×800×30
    800×800×40
    800× 800×45
    5-1000
    5-1500
    5-2000
    57.7
    76.9
    86.5
    LT 10101000× 1000×30
    1000× 1000×40
    1000× 1000×50
    5-1000
    5-1300
    5-1500
    89.1
    118.8
    147
    LT 12121200× 1200×30
    1200× 1200×40
    1200× 1200×50
    5-800
    5-1100
    5-1400
    126
    168
    210

    Technical Parameters of Vertical Vibration Table:


    ModelWeight (kg)Max. Frequency (Hz)Bench Size
    VT300102000Φ300
    VT400162000Φ400
    VT500251500Φ500
    VT600351000Φ600
    VT0303152000300×300
    VT0404221500400×400
    VT050530500500×500
    VT060658350600×600
    VT0808140350800×800
    VTl0101803501000×1000
    VT12122503501200 × 1200
    VT1212 (Round bench)220350Φ1200

    Application:


    We are manufacturer of ES-20 Digital Electrodynamics Type VibrationTester, High Frequency Vibration Test Machine series products, adopted the 'double-magnetic circuit structure',' self-generated skeleton action circles', 'Airborne Support’ and 'roller bearings and linear guidance', 'trunnion isolation’ advanced modern technology and special technology, can be completed in X,Y,Z three-axis sinusoidal vibration test and broadband random vibration tests, to be completed by the classical (half - sine, trapezoidal, saw tooth wave) pulse and shock response spectrum test. These products are widely used in national defense, weapons, aviation, aerospace, communications, electronics, electrical appliances, communications, home appliances and other fields.


    20000N Dynamic Vibration Shaker Machine For LED Display Device20000N Dynamic Vibration Shaker Machine For LED Display Device20000N Dynamic Vibration Shaker Machine For LED Display Device


    Pics for reference:


    Customer Visit ASLi Company:



    If you have any question about Vertical and Horizontal Vibration Tester, please kindly contact with us feely, thank you .
