1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber

Ask Lasest Price
Brand Name :	ASLI
Model Number :	SH-60
Certification :	CE, ISO
Price :	negotiable
Payment Terms :	T/T, Western Union
Supply Ability :	100 sets per quatar
Delivery Time :	15 workdays

Add to Cart

Product Details
Company Profile

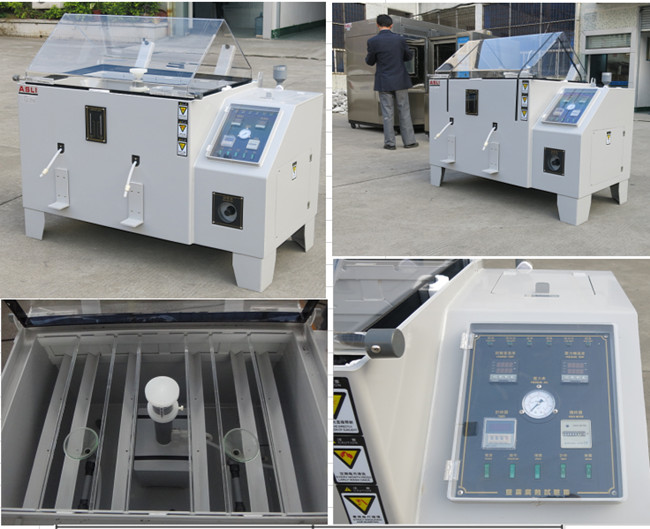

1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber

Product Description

Salt Spray Resistance Corrosion Test Chamber can be used for a variety of materials including coating, surface treatment, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.

Test Standard :
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test

Specification

Salt Spray Resistance Corrosion Test Chamber Technical Parameters
Model	SH-60	SH-90	SH-120	SH-160
Internal Dimension WHD (mm)	600450400	900600500	1200800500	1600800500
External Dimension WHD (mm)	11006001200	14009501200	190013001400	230013001400
Lab Temperature	Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree
Pressure Bucket Temperature	Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree
Lab Capacity(L)	110	270	500	800
Saline Capacity(L)	15	25	40	40
Saline Concentration	5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Compressed Air Pressure(Kgf)	1.0~6.0
Spray Volume	1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form	Continuous Spraying or Programmable Spraying
Power	AC220V 1phase 3 lines15A
Weight(Kg)	65	80	120	160

Salt Spray Resistance Corrosion Test Chamber Specifications
1.LCD display and a pid controller or touch screen programmable controller.
2.Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
3.Controller are in the same panel, the operation simple and clear.
4.Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test lab

Packing & Delivery

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Company Profile

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Salt Spray Resistance Corrosion Test Chamber is our star products , and we had obtained the CE certification for this machine
