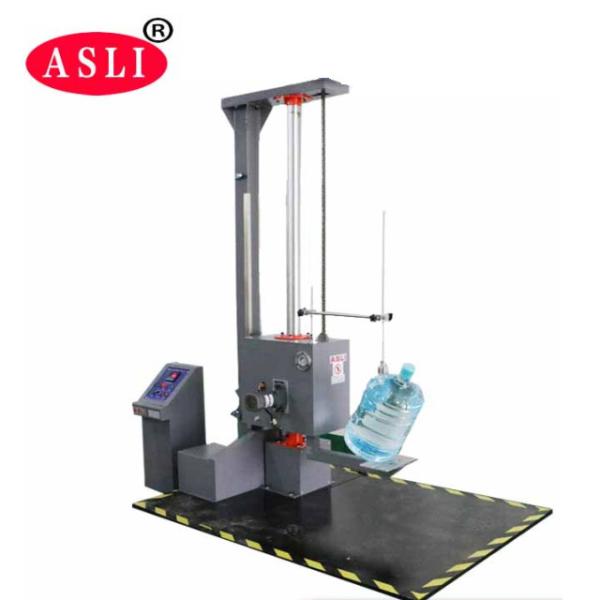

300~1500mm drop height, adjustable
The drop height can customized
The machine can add guardrail
With Limit switch for protection machine
Packing Drop Test Machine also known as a drop tester or drop impact tester, is a device
used to simulate the impact of a product or package during shipping
or handling. The machine works by dropping the product or package
from a specified height and measuring its performance or resistance
to damage.
The function of a drop test machine is to assess the ability of a
product or package to withstand impacts and vibrations that may
occur during transport, storage, or handling. It is commonly used
in industries such as packaging, transportation, and consumer
electronics to evaluate the durability and reliability of their
products.
The drop test machine typically consists of a platform or fixture
for holding the product or package, and a mechanism for raising it
to a specified height and dropping it onto a hard surface. The
height, orientation, and number of drops can be adjusted based on
the specific requirements of the test.
During the test, the product or package is monitored for any
damage, such as cracks, dents, or scratches. The severity and type
of damage can be used to evaluate the effectiveness of the
packaging design, materials, and manufacturing process. The data
collected from the drop test can also be used to make improvements
to the product or packaging design to ensure that it can withstand
the rigors of transportation and handling.
Product Parameters
| Model | AS-DT-120 | AS-DT-150 | AS-DT-200 |
| Max. Weight of Test Samples (Kg) | ≥200 | 100 | 100 |
| Height of Drop (mm) | 0~1200 | 300~1500 | 300~2000 |
| Max. Dimension of Test Sample WxHxD (mm) | 1200x1200x1200 | 1000x800x1000 | 1000x800x1000 |
| Falling Floor Size WxHxD (mm) | 1400x50x2000 | 1700x50x1200 | 1700x50x1200 |
| Drop Method | Face, edge, angle |
| Test Bench External Dimension WxHxD (mm) | 1400x2000x1800 | 1700x2700x1200 | 1700x2700x1200 |
| Weight (Kg) | 1500 | 600 | 700 |
| Power | AC 380V |

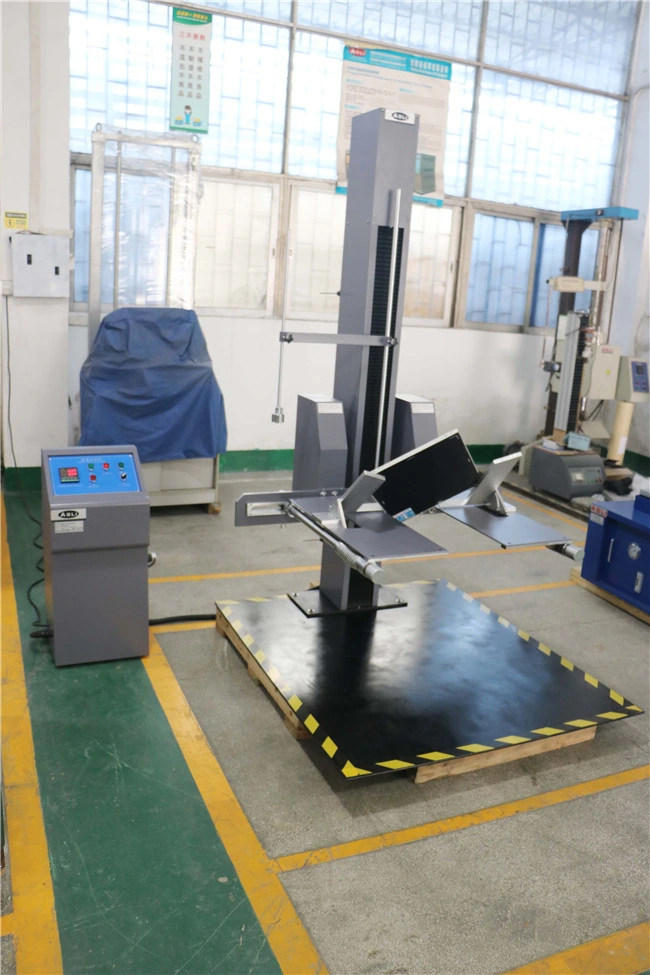

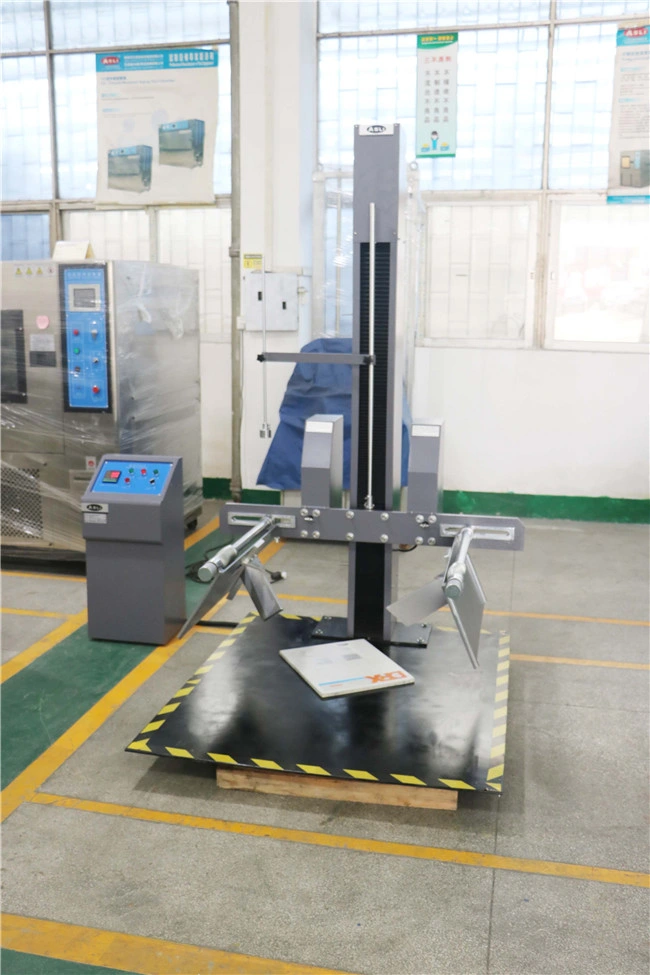

Detailed Photos
Free Fall Drop Test Machine for Packaging Feature:
1. The main axle of tester used dual axle rode, high precision and
good stability. Power failure safety design, it will be kept the
original condition under power cut and the swing arm will not break
away unusually.
2. The tester has set limits upward and down, will not exceed
safety range when testing.
3. Support arm with electronic reset capability, can avoid the
accident by manual operation.
4. Multi-functional sample supporter: Can rapidly fix the different
size package to test the package edges, sides and corners.
5. Micro adjusting control, can rapidly set to the needed testing
height.
Control Panel:
Packaging & Shipping
1. PP film first
2. Vacuum package
3. PP film again
4. 10mm thickness PU foam to avoid collision
5. stronged plywood case
6. Standard ASLI CASE MARK
Packing Detail:.
Short Introduction about ASLi Factory:
We are a long history testing equipment manufacturer, in the past
28 years, we devoted to simulation environmental testing equipment
and Mechannical vibration and shock testing machine. Free Fall Drop
Test Machine for Packaging is our star products , and we had
obtained the CE certification for this machine .
