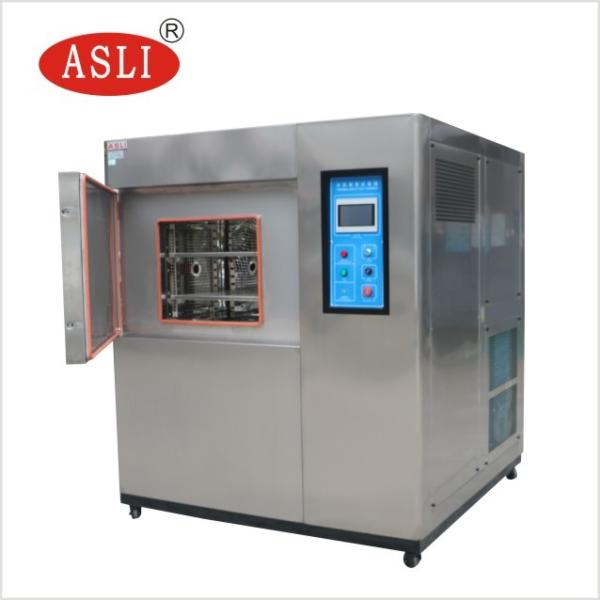

    3 Zones Thermal Shock Test Chamber For Semiconductor

    Ask Lasest Price
    Brand Name : ASLI
    Model Number : TS-49-C
    Certification : CE, ISO
    Price : negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 100 sets per quatar
    Delivery Time : 30 workdays
    • Product Details
    • Company Profile

    3 Zones Thermal Shock Test Chamber For Semiconductor

    3 Zone Thermal Shock Test Chamber For Semiconductor is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm, which is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.
    Specification
    Model
    TS-49(A~C)
    TS-80(A~C)
    TS-150(A~C)
    TS-252(A~C)
    TS-450(A~C)
    Internal Dimension WxHxD (mm)
    400X350X350
    500X400X400
    600X500X500
    700X600X600
    800X750X750
    External Dimension WxHxD (mm)
    1400X1800X1400
    1550X1950X1550
    1600X2000X1700
    1700X2100X1750
    1800X2200X1900
    Temperature Range of Testing zone
    Type A: -40 ºC~+150ºC
    ( 200ºC is Optional)
    Type B: -55ºC ~+150ºC
    ( 200ºC is Optional )
    Type C: -65ºC ~+150ºC
    ( 200ºC is Optional)
    High temperature Range of Testing zone: +60ºC~+150ºC ( 200ºC is Optional);
    Low Temperature Range of Testing Zone: -10ºC~-40ºC / -55ºC / -65ºC
    Exposure Time of High/Low Temperature
    Exposure Time of High Temperature: +60ºC ~ +150ºC (200ºC is Optional) 30Mins
    Exposure Time of Low Temperature: -10ºC~Type A: -40ºC / Type B -55ºC / Type C -65ºC 30Mins
    Temperature of Heat-Storing Slot / Heating Time
    RT~200ºC/About 45mins
    Temperature of Cool-storing Slot / Cooling Time
    RT~-75ºC/ About 100mins
    Temperature Recovery Time / Conversion Time
    ≤5min/≤5sec
    Control Accuracy / Distribution Uniformity
    ±0.5ºC/±2ºC
    Internal and External Material
    Material of the inner box is SUS 304# stainless steel, of the outer box is stainless steel or see cold-rolled steel with paint
    coated.
    Insulation Material
    High temperature resistant, high density, formate chlorine, ethyl acetum foam insulation materials
    Mechanics
    P. I. D+S. S. R+ Micro-computer balanced temperature control system
    Cooling System
    Semi-hermetic double-stage compressor(water-cooled type) /
    Hermetic double-stage compressor (air-cooled type)
    Security Protection Devices
    Non-fuse breaker, high and low pressure protective switch of the compressor, refrigerator high-pressure protective switch, failure
    warning system, electronic alarm
    Accessories
    viewing window(special order)
    Compressor
    French 'Tecumseh' Brand, Germany Bizer Brand
    Power
    AC380V 3phase 5 lines, 50/60Hz
    Weight (Approx)
    450 Kg
    600 Kg
    750 Kg
    900 Kg
    1300 Kg

    3 Zone Thermal Shock Test Chamber For Semiconductor Testing Specific:
    GB/T 2431.1-2001 Testing A: Low temperature testing method
    GB/T 2431.2-2001 Testing B: High temperature testing method
    GJB 150.3-1986: High temperature
    GJB 150.4-1986: Low temperature
    IEC68-2-1 Test A: Cold
    IEC68-2-2 Test A: Dry
    GB 11158 High and low temperature test term
    GB/T 2423.2 << Electrolic products basic environmental test: B: high temperature method>>


    Cooling system and temperature control:
    1. Working way: Size selection for machine model; the cascade of mechanical refrigeration; air-cooling.
    2. Refrigeration Compressors: Imported famous brand low efficiency hermetic or semi-hermetic compressors.

    3. Evaporator: Fin-type multi-stage automatic load capacity adjustment evaporator.
    4. Condenser: Shell and tube heat dissipation condensation.
    5. System expansion: Refrigeration system capacity control purposes
    6. Cooled heat exchanger: Made in Taiwan ultra-high efficiency stainless steel plate.
    7. Cooled machine control mode: Control system controller automatically adjusts the cooled operating conditions based on test conditions than the traditional design, control stability and reproducibility of high power and achieve effectiveness. Return air compressor cooling circuit.
    8. Refrigerant and refrigeration piping: R22, R-23, R404A, Environmental Protection; indices are zero ozone depletion refrigerant pipes have automatic and manual defrost function
    Packing & Delivery
    strongly export plywood case for free
    Company Profile
    ASLI Company, a leading laboratory test equipment manufacturer in China. With over 28 years of experience in the industry, we take pride in our top-quality products and services that have gained the trust of our customers worldwide.

    Below equipment we supply:
    Temperature Humidity Test Chamber
    3 Zone Thermal Shock Test Chamber
    PCT/HAST Aging Test Chamber
    High Temperature Furnace/Oven
    High Frequency Vibration Shaker
    Drop Test Machine
    Mechanical Impact Test Table
    Salt Spray Test Chamber
    ...

    We are committed to providing our clients with the best equipment that meets international standards and specifications. Our team of experts ensures that our products undergo strict quality assurance and inspection processes to ensure their durability, reliability, and efficiency.
    If you have any doubt or needs about 3 Zones Thermal Shock Test Chamber for Semiconductor, please don't hesitate to send your inquiry.
